NAKAMICHI Double DIN Head Unit | Android & Apple Mirror Link

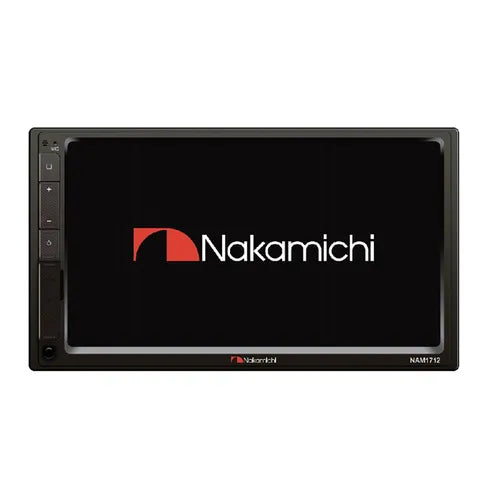

The NAKAMICHI NAM1712 Double DIN Head Unit with Android & Apple Mirror Link

Voltage 14.4V(10.5-16V)
Panel Installation Size
178×100mm
170×96mm

Net Weight 0.8kg

TFT SCREEN ITEM

Display Size 7''
Display Resolution 800×480
Contrast Degree 400
Brightness 400nit

BLUETOOTH

Communication System BT4.0+EDR
Frequency Band 2.4GHz
Max Range 5m

AUDIO

Maximum Power 4×50W
FrontOutput(V) 4V/10KO
Pre-output impedance =600O
Speaker impedance 4-8O

VIDEO

External Video Input system NTSC/PAL/SECAM
Exteral Video Input 1VP-P/75O
VIDEO FORMAT
H264/MP4/AIV/MKV/FLV
AUDIO FORMAT
MP3/APE/AAC/FLAC

USB INTERFACE

USB Readable/Chargeable (5±0.25V/1A)
RADIO
FM Frequency Range 87.5-108.0MHZ
AM FM Frequency Range 522-1620KHZ

*Modification to brackets for install in vehicles may be required
